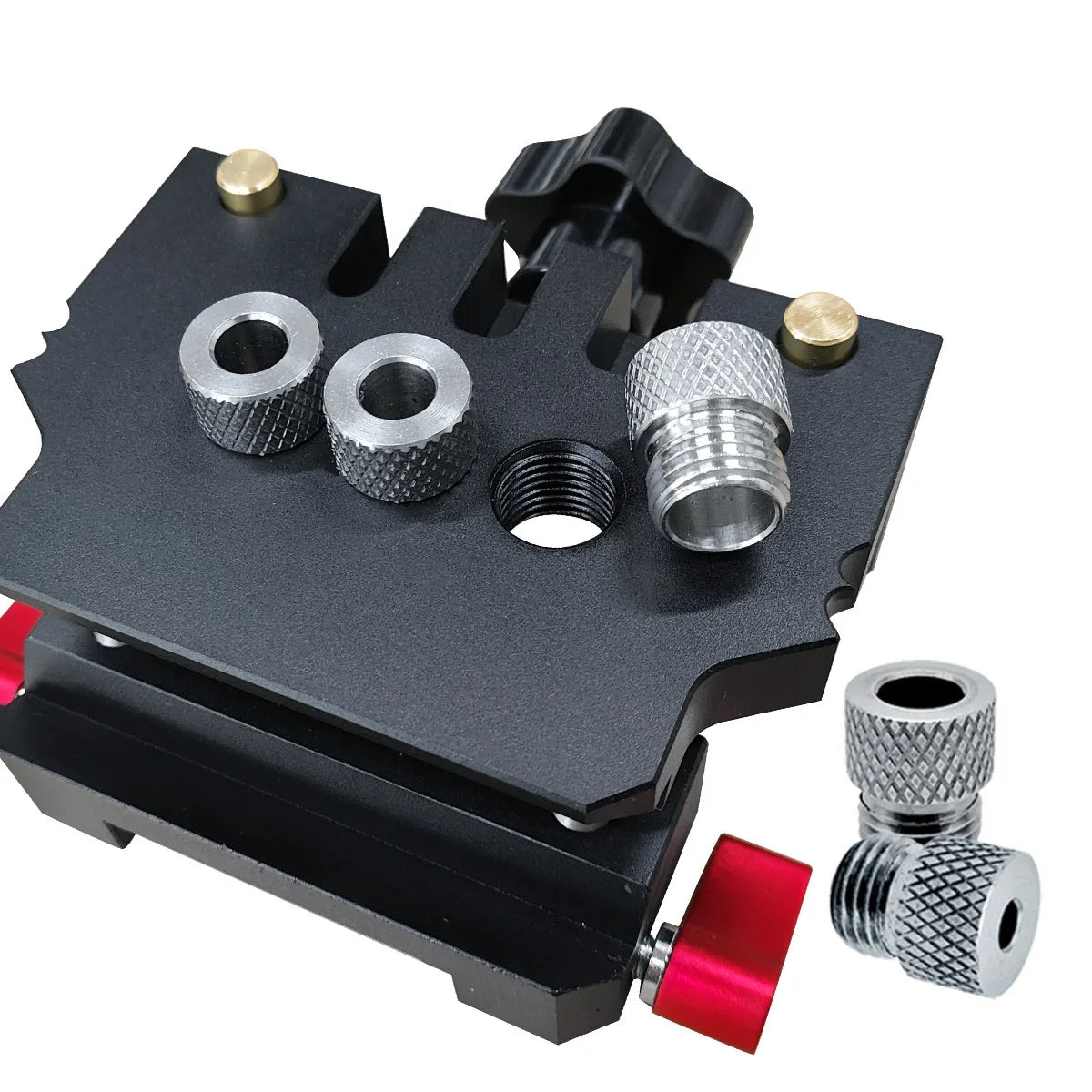

This self-centering doweling jig kit is designed to assist with accurate hole alignment for woodworking projects involving dowel joints, edge joining, and panel assembly. The self-centering mechanism helps position drill holes consistently on wooden boards and round tenons, making it suitable for furniture building, cabinet construction, repairs, and general woodworking applications. Manufactured from CNC-machined anodized aluminum alloy, the jig provides stable positioning during repetitive drilling tasks. Multiple drill bushings, drill bits, and depth stop rings are included to accommodate common dowel sizes, offering versatility for a wide range of woodworking projects.

Key Features

• Features a self-centering design that helps align drill holes accurately on wood panels and dowel joints
• Provides interchangeable drill bushings for 6 mm, 8 mm, and 10 mm dowel applications
• Includes matching drill bits and depth stop rings for common woodworking joinery tasks
• Supports panel joining, round tenon installation, and furniture assembly projects
• Offers CNC-machined anodized aluminum alloy construction for repeated workshop use

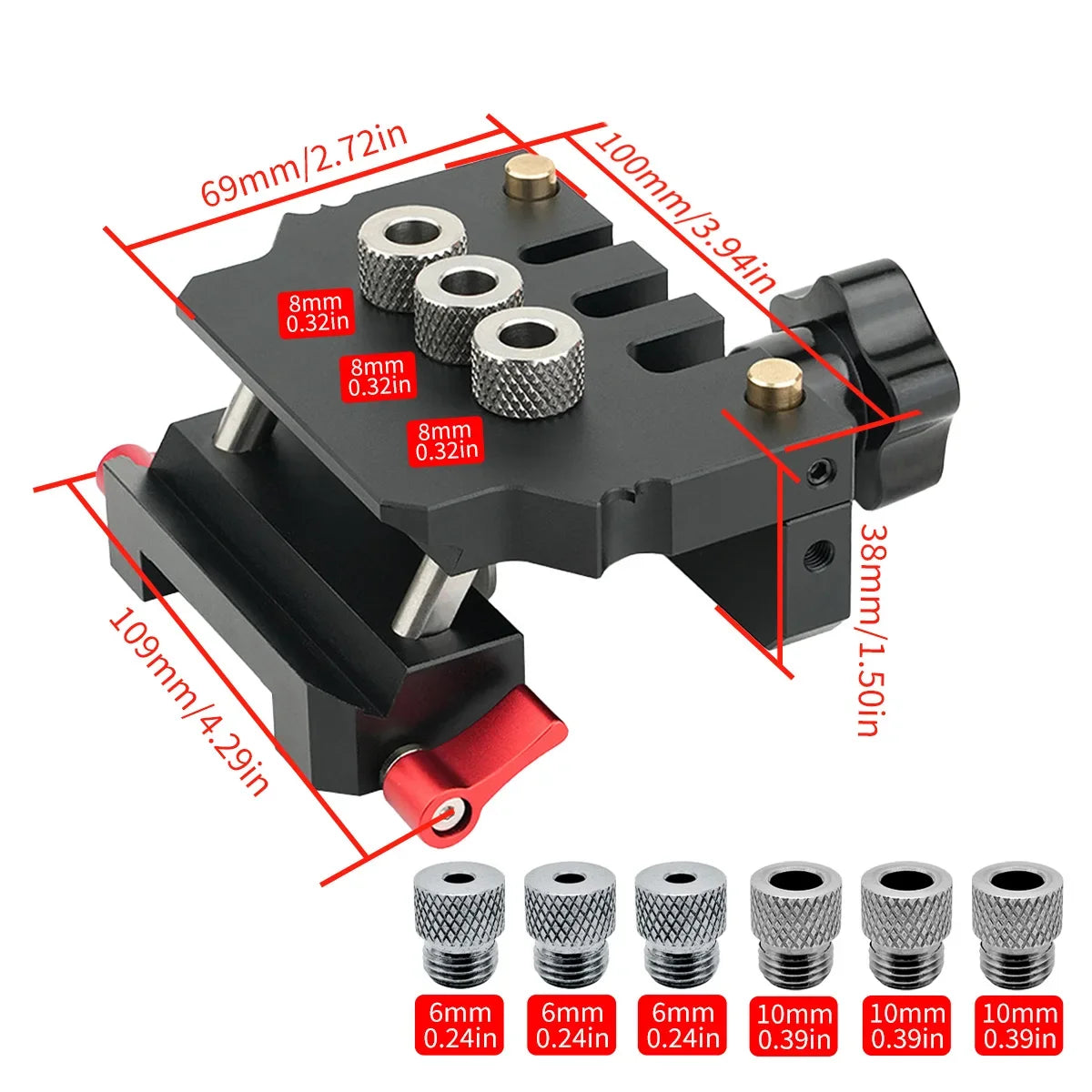

Specifications

• Product Type: Self Centering Doweling Jig Kit
• Primary Material: CNC Anodized Aluminum Alloy
• Color: Black and Red
• Product Dimensions: 10 cm x 6.9 cm x 3.8 cm
• Clamp Body Length: 10.9 cm
• Clamping Range: 1.2 cm to 2.6 cm
• Drill Guide Sizes: 6 mm, 8 mm, 10 mm
• Compatible Applications: Round Wood Tenons and Wooden Panel Joinery
• Product Weight: 0.820kg

Package Contents
1 x Main Body
1 x 6 mm Drill Bit
1 x 8 mm Drill Bit
1 x 10 mm Drill Bit
1 x 6 mm Limit Ring
1 x 8 mm Limit Ring
1 x 10 mm Limit Ring
3 x 6 mm Drill Sleeves
3 x 8 mm Drill Sleeves (Pre-Installed)
3 x 10 mm Drill Sleeves
