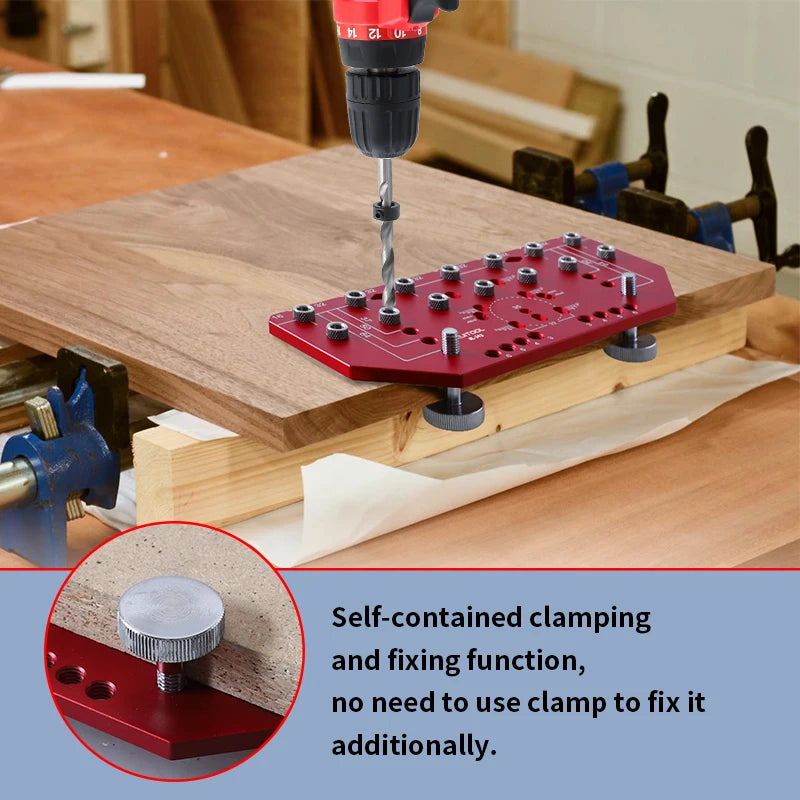

This 2-in-1 shelf pin and hinge drilling jig is designed to assist with accurate hole positioning for cabinet construction, furniture assembly, and woodworking projects. Manufactured from aluminum alloy, the jig provides a stable guide for drilling shelf pin holes and positioning concealed cabinet hinges with consistent spacing and alignment. The integrated positioning system helps simplify repetitive drilling tasks while reducing measurement errors during installation. Suitable for workshops, cabinet making, furniture repairs, and DIY woodworking applications, the jig includes drill bits, positioning hardware, and storage accessories to support efficient setup and operation.

Key Features

• Features a combined shelf pin drilling guide and hinge positioning template in one tool
• Provides aluminum alloy construction for stable positioning during drilling operations
• Includes drill bits, positioning hardware, and adjustment accessories for setup tasks
• Enables consistent hole spacing and alignment for cabinet shelves and hinge installation
• Supports woodworking, cabinet construction, furniture assembly, and repair projects

Specifications

• Product Type: Shelf Pin and Hinge Drilling Jig
• Primary Material: Aluminum Alloy
• Color: Red
• Product Weight: 0.699kg
• Shelf Pin Hole Sizes: 5 mm and 6 mm (1/4 inch)
• Hole Spacing: 32 mm (1-1/4 inch)
• Edge Distance Options: 37 mm, 50 mm, 64 mm
• Hinge Compatibility: 35 mm Hinges
• 5 mm Drill Bit Length: 88 mm
• 6 mm Drill Bit Length: 102 mm
• Positioning Pin Length: 50 mm

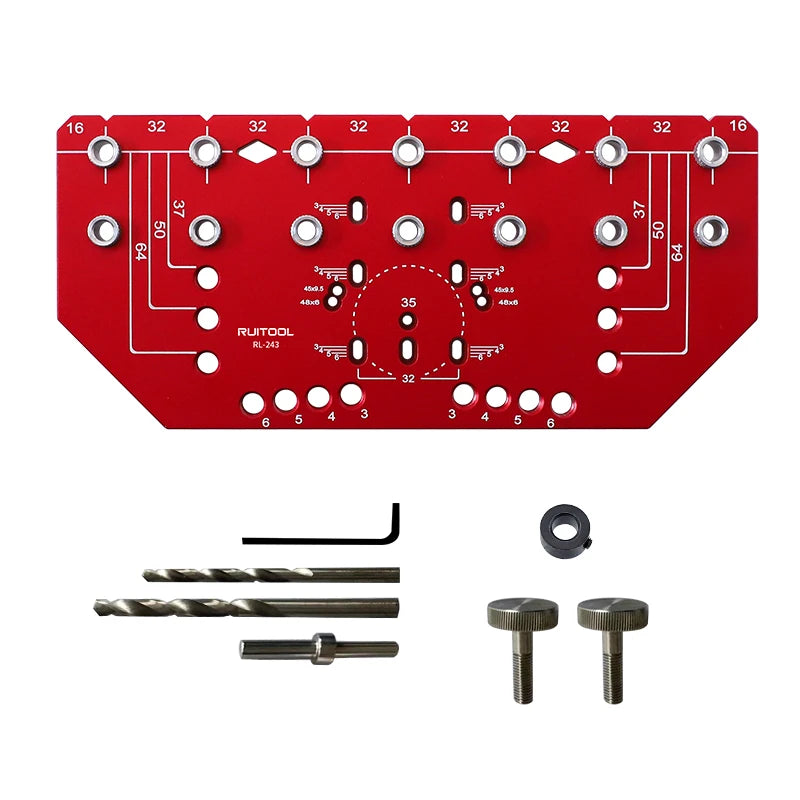

Package Contents
1 x Carrying Storage Bag
1 x Drill Guide Jig Plate
1 x 5 mm Drill Bit
1 x 6 mm Drill Bit
1 x Hex Key Wrench
1 x Positioning Pin
1 x Stop Collar
2 x Offset Screws
