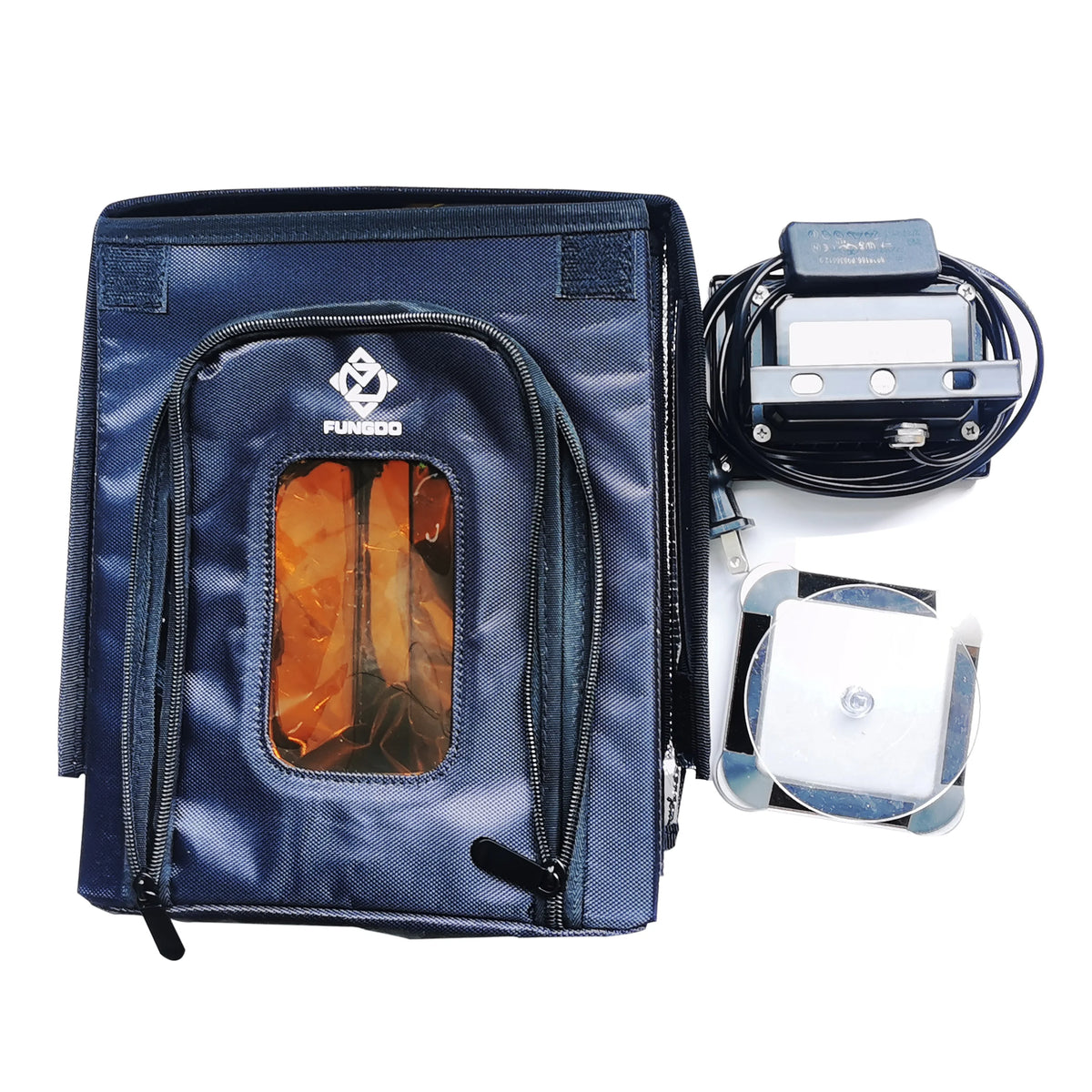

This UV resin curing box provides an enclosed workspace for post-curing compatible resin 3D printed objects. The DIY enclosure combines an overhead UV LED light with reflective interior sheets and a rotating display platform to expose printed objects from multiple directions during curing. A viewing window allows the process to be observed from outside the enclosure, while the front zipper opening provides access for positioning and removing models. The turntable operates from the UV light rather than requiring a separate control switch, creating a straightforward manual setup for resin printing workspaces, hobby areas and workshops using compatible UV-curable resin materials.

Key Features

• Features 6 UV LEDs operating at a 405 nm wavelength with a stated 6W power rating for curing compatible UV resin prints.
• Provides an approximately 22 x 21 x 26 cm internal curing area to accommodate a range of compatible resin printed models.
• Includes 3 reflective interior sheets that redirect UV light around the enclosure to support exposure from multiple directions.
• Uses a light-driven turntable measuring approximately 10 x 10 x 4.5 cm with a 9 cm tray and approximately 0.3-0.5 kg load capacity.
• Offers a maximum turntable rotation speed of approximately 4.5 rotations per minute, with curing time controlled manually by the user.

Specifications

• Product Type: UV Resin Curing Box
• Enclosure Material: Cardboard with Reflective Interior Sheets
• Color: Black
• UV Wavelength: 405 nm
• UV LED Quantity: 6
• Power Consumption: 6W
• Voltage: 220-240V
• Frequency: 50Hz
• Plug Type: Australian Type I Plug
• Curing Area: Approximately 22 x 21 x 26 cm
• UV Light Dimensions: Approximately 11.5 x 8.7 x 7.6 cm
• Reference Weight: 1.95 kg

Turntable Specifications

• Turntable Material: ABS
• Turntable Dimensions: Approximately 10 x 10 x 4.5 cm
• Tray Diameter: Approximately 9 cm
• Load Capacity: Approximately 0.3-0.5 kg
• Maximum Rotation Speed: Approximately 4.5 Rotations Per Minute
• Operating Voltage: 1.2V
• Operating Method: Light Driven
• Turntable Color: Silver, White or Gold - Random

Package Contents
1 x UV LED Light
1 x Light-Driven Turntable
1 x Curing Enclosure
3 x Reflective Sheets
4 x M4 Screws
4 x M4 Nuts
4 x M4 Pads
1 x Light Support Board
1 x Screwdriver
1 x Assembly Manual
