This CNC solder paste stencil fixture is designed to assist with positioning and alignment during PCB stencil printing and SMT assembly work. Its adjustable platform supports compatible circuit boards and steel stencils while screw-fastened components help maintain their position during solder paste application. The fixture incorporates resistance hinges for opening and closing the stencil holder and engraved measurement scales to assist with repeatable positioning. It supports several common PCB thicknesses and can accommodate both single-sided and double-sided assembly work. The manually operated benchtop design is suitable for electronics workshops, PCB prototyping, repair workstations, and small-batch circuit board assembly applications.

Key Features

• Features an adjustable CNC aluminum alloy platform for positioning compatible PCBs and steel stencils during solder paste application.
• Provides support for PCBs up to 10 x 13 cm and accommodates several commonly used board thicknesses.
• Includes screw-fastened positioning components that help maintain PCB and stencil alignment during manual printing work.
• Offers resistance hinges for controlled opening and closing of the stencil holding section during repeated assembly tasks.

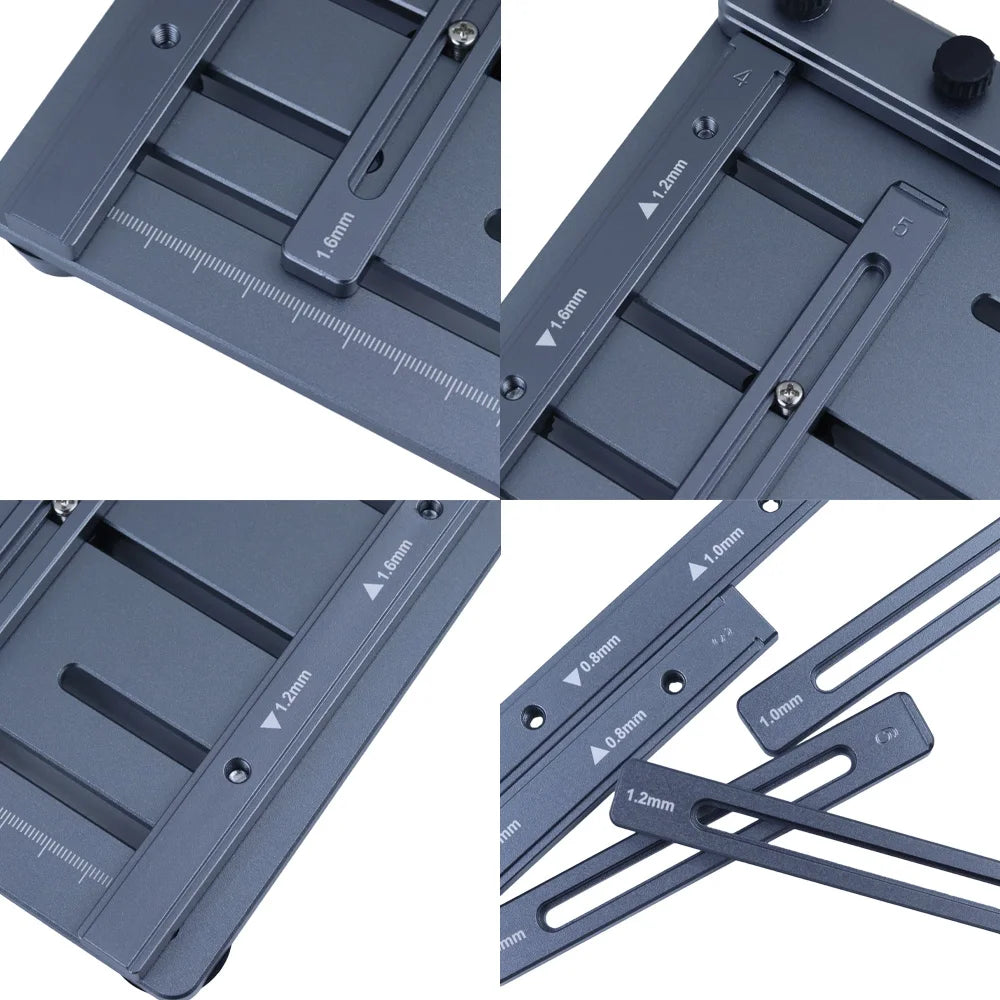

• Supports single-sided and double-sided SMT work with engraved measurement scales for assisting PCB and stencil positioning.

Specifications

• Product Type: CNC Solder Paste Stencil Fixture
• Primary Material: CNC Aluminum Alloy
• Color: Dark Grey
• Product Dimensions: 22 x 18 x 6.5 cm
• Product Weight: 0.55 kg
• Maximum PCB Size: 10 x 13 cm
• Compatible PCB Thicknesses: 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm
• Stencil Compatibility: Steel Stencils
• PCB Compatibility: FR4 and Phenolic PCB Substrates
• Stencil Fixation: Screw-Fastened
• Operation Type: Manual
• SMT Configuration: Single-Sided and Double-Sided

Package Contents
1 x CNC Solder Paste Stencil Fixture
